Visualization of bent normals

I have visualized bent normal.

Bent normal is an average unblocked direction. It can be calculated when computing ambient occlusion.
To visualize it, I have normalized them.

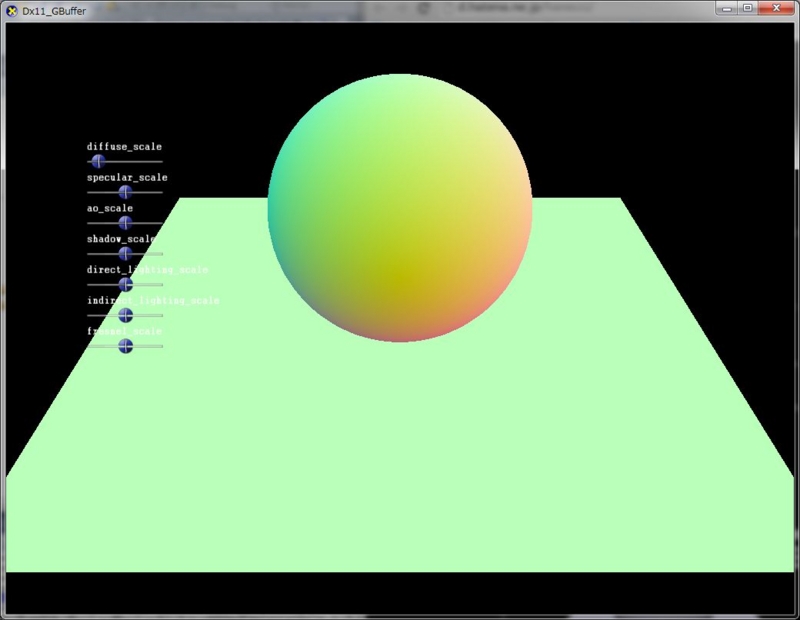

This picture visualizes the original vertex normal.

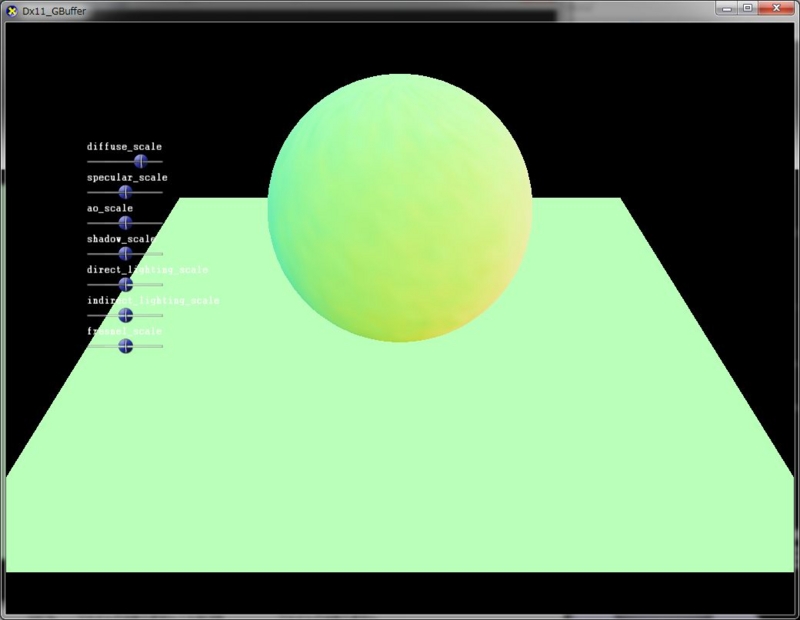

And this picture visualizes the bent normal.

• Reference paper
  • "Bent Normals and Cones in Screen-space". O. Klehm, T. Ritschel, E. Eisemann, H.P. Seidel.
