Deferred shading at Direct3D11 (0)
I'm currently writing a test program for deferred shading at Direct3D11.
Direct3D11 で GBuffer を生成して, Deferred shading を行うテストプログラムを作成中です.

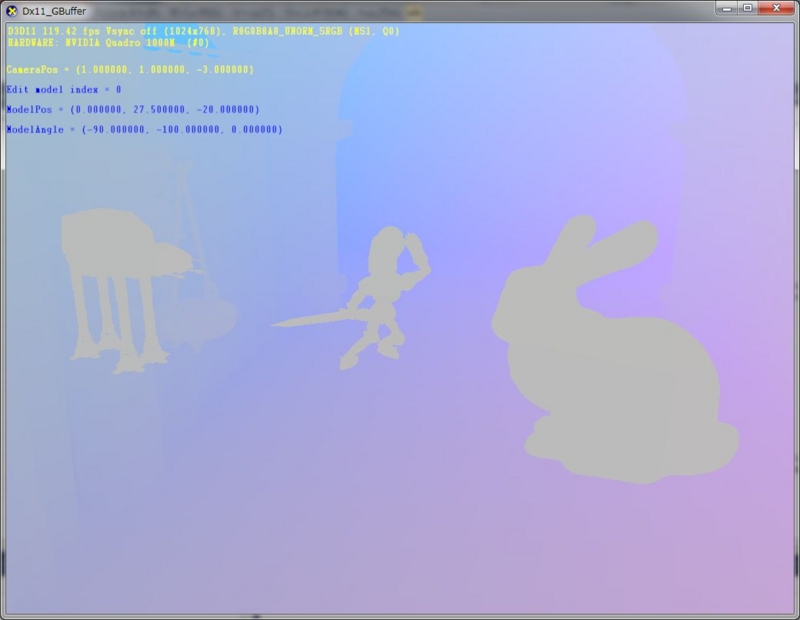

Debug draw of normal buffer in world coordinate.
ワールド座標系の法線を書き込んだバッファの可視化.
Debug draw of position buffer in world coordinate.
ワールド座標系の位置座標を書き込んだバッファの可視化.

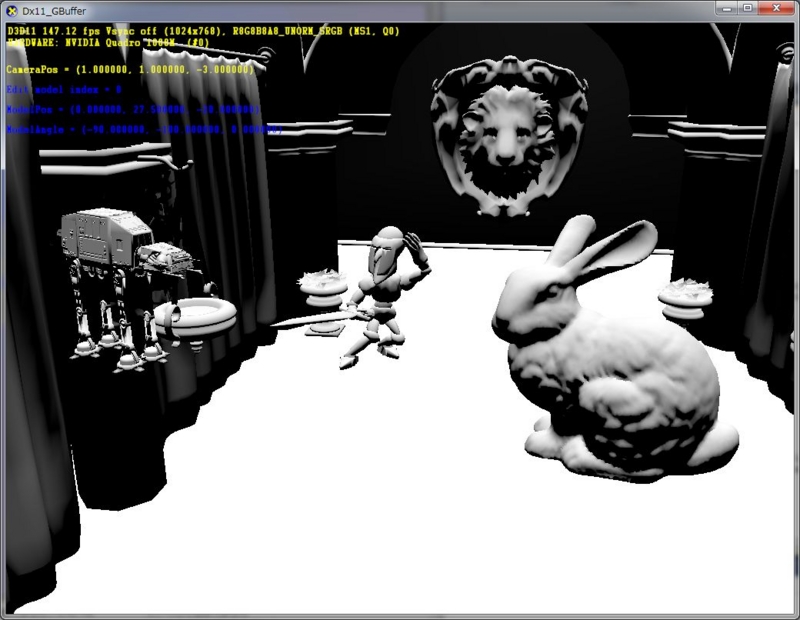

Result of diffuse lighting using the G-Buffer and a single directional light.
GBuffer とディレクショナルライトでライティングを行った結果.

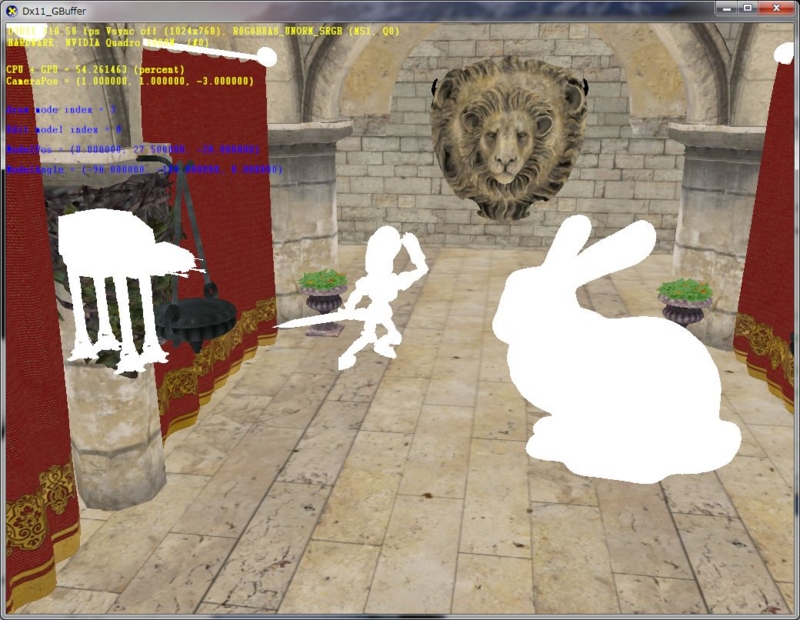

Debug draw of diffuse albedo texture.
Diffuse Albedo テクスチャを書き込んだバッファの可視化.
Debug draw of specular albedo texture.
Specular Albedo テクスチャを書き込んだバッファの可視化.
//-------------------------------------------------------------------------------------- // // Dx11GBufferLightPrepass.hlsl ( hanecci 2011/12/30 ) // //-------------------------------------------------------------------------------------- cbuffer cbTransformMatrix : register( b0 ) { float4x4 mWorldViewProjectionMatrix : packoffset( c0 ); float4x4 mWorldViewMatrix : packoffset( c4 ); float4x4 mProjectionMatrix : packoffset( c8 ); float4x4 mWorldMatrix : packoffset( c12 ); float4x4 mViewProjectionMatrix : packoffset( c16 ); }; //-------------------------------------------------------------------------------------- struct VS_INPUT { float4 vPosition : POSITION; float3 vNormal : NORMAL; }; //-------------------------------------------------------------------------------------- struct VS_OUTPUT { float4 vPositionCS : SV_Position; float3 vNormalWS : NORMALWS; float3 vPositionWS : POSITIONWS; }; //-------------------------------------------------------------------------------------- struct PS_INPUT { float4 vPositionSS : SV_Position; float3 vNormalWS : NORMALWS; float3 vPositionWS : POSITIONWS; }; //-------------------------------------------------------------------------------------- struct PS_OUTPUT { float4 vNormal : SV_Target0; float4 vPosition : SV_Target1; }; //-------------------------------------------------------------------------------------- VS_OUTPUT MainVS( VS_INPUT input ) { VS_OUTPUT output; output.vPositionWS = mul( input.vPosition, mWorldMatrix ).xyz; output.vNormalWS = normalize( mul( input.vNormal, ( float3x3 ) mWorldMatrix ) ); output.vPositionCS = mul( input.vPosition, mWorldViewProjectionMatrix ); return output; } //-------------------------------------------------------------------------------------- PS_OUTPUT MainPS( PS_INPUT input ) { PS_OUTPUT output; output.vPosition = float4( input.vPositionWS, 0.2f ); float3 normalWS = normalize( input.vNormalWS ); output.vNormal = float4( normalWS, 0.4f ); return output; } //--------------------------------------------------------------------------------------
//-------------------------------------------------------------------------------------- // // Dx11DeferredShading.hlsl ( hanecci, 2011/12/31 ) // //-------------------------------------------------------------------------------------- Texture2D mNormalTexture : register( t1 ); Texture2D mPositionTexture : register( t2 ); //-------------------------------------------------------------------------------------- static const float3 cLightDir = float3( 0.0f, -1.0f, 0.0f ); static const float3 cLightDiffuseColor = float3( 1.0f, 1.0f, 1.0f ); static const float3 cLightSpecularColor = float3( 1.0f, 1.0f, 1.0f ); //-------------------------------------------------------------------------------------- struct VS_Input { float3 vPosition : POSITION; float2 vTexcoord0 : TEXCOORD0; }; //-------------------------------------------------------------------------------------- struct PS_Input { float4 vPosition : SV_Position; }; //-------------------------------------------------------------------------------------- PS_Input MainVS( VS_Input vs_input ) { PS_Input ps_input = ( PS_Input ) 0; ps_input.vPosition = float4( vs_input.vPosition, 1.0f ); return ps_input; } //-------------------------------------------------------------------------------------- void getGBufferAttributes( in float2 screenPos, out float3 normal, out float3 position ) { int3 sampleIndices = int3( screenPos.xy, 0 ); normal = mNormalTexture.Load( sampleIndices ).xyz; position = mPositionTexture.Load( sampleIndices ).xyz; } //-------------------------------------------------------------------------------------- float3 calcDirectionalLighting( float3 worldNormal, float3 worldPosition, float3 lightWorldDir, float3 lightDiffuseColor, float3 lightSpecularColor ) { float3 color = float3( 0.0f, 0.0f, 0.0f ); float3 lightDir = - lightWorldDir; float dotValue = max( dot( lightDir, worldNormal ), 0.0f ); color = dotValue * lightDiffuseColor; return color; } //-------------------------------------------------------------------------------------- float4 MainPS( PS_Input ps_input ) : SV_Target { float3 worldNormal; float3 worldPosition; getGBufferAttributes( ps_input.vPosition.xy, worldNormal, worldPosition ); float4 color = float4( 0.0f, 0.0f, 0.0f, 1.0f ); color.xyz = calcDirectionalLighting( worldNormal, worldPosition, cLightDir, cLightDiffuseColor, cLightSpecularColor ); return color; } //--------------------------------------------------------------------------------------
